ANPR and OpenALPR integration

[XeoMax]

Hello.
I bought a PRO license for the anpr module.
I'm in Italy, so i downloaded via GUI the openalpr module and selected "Europe and UK".
It doesn't recognize nothing.
If i tick the "Russia" checkbox, it recognizes the plates but all plate numbers are wrong (obvioulsy).
Can someone point me in the right direction, on how to get the "Europe and UK" recognition to work?
Thanks.

[Admin_N]

Hello,

What version of Xeoma do you use, on what operating system?

The failure to detect your license plates might be connected with how the license plates are positioned (the angle might be too acute, the image might be too blurry, the lighting might be too poor, etc.)
We recommend you to try different combinations of the listed parameters.
Also, we could send you recommendations if you send us a screenshot of how the license plates are positioned in camera image to our support.

You can't really use the "Russia" checkbox for comparison because it doesn't use openALPR. Instead, techniques developed by our team are used for recognition of Russian and Kazakhstanian license plates. So they have different algorithms for detection of license plates and can't be compared.

BR,
Admin_N

[XeoMax]

Hello
Xeoma 18.11.14 running on a MAC Mini with MacOs Mojave
I'm testing the stuffs in the laboratory. Tested with the plate in any angle. Tried to adjust some options in the Xeoma GUI but nothing changes. I see that Xeoma takes a shot and saves it in the Openalpr folder, but then nothing happens.



[Admin_N]

If it's not a real vehicle with a real plate, just a number for tests instead, you should untick the "Recognize only changed areas" option at the bottom of your ANPR module settings. You can find the option under the monitored zone section, where you should also make sure that the sufficient area is marked with the red brush.

Does it help?

[XeoMax]

Hello Admin
Thanks for the suggestion but unfortunately, nothing changes.

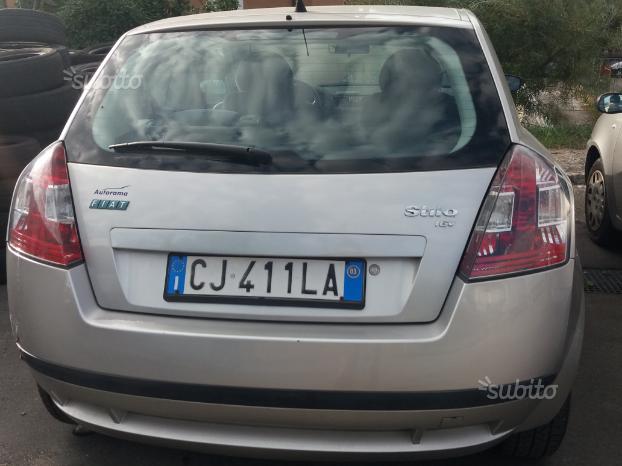

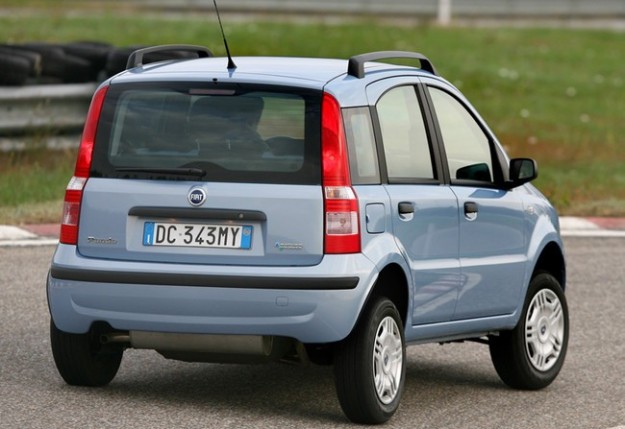

Tried with these cars with checkbox and without checkbox. Does it work for you? I suspect a problem in lauching the openalpr program. Maybe due to permission or so.



[Admin_N]

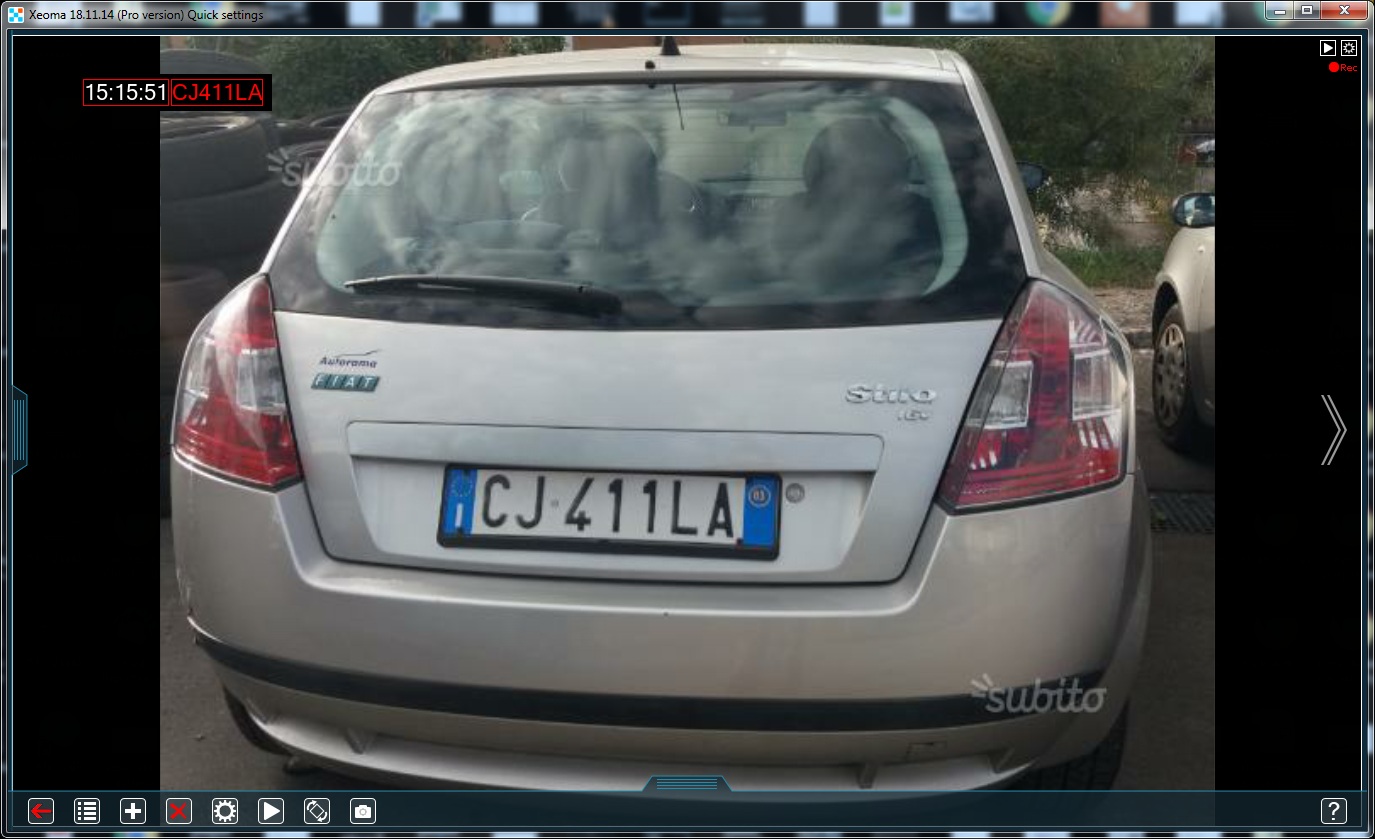

Yep, both work ok.



Might be the permissions but also might be wrong settings.

Here's what you should check:

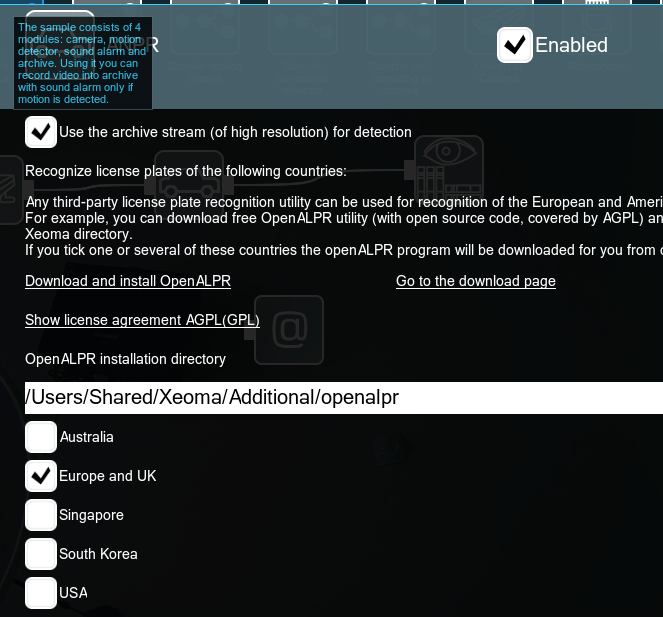

*TICK Europe and EU, nothing else
*UNTICK Russia and Kazakhstan
*SET "Postrecord" to 3 secs
*SET "Detection type" to DETECT ALWAYS
*SET "Show information" for 3 secs
*Make sure the red zone covers the license plate
*UNTICK "Recognize only changed areas"
*Make sure there is nothing in the white list and in the path for external utility
*Make sure that the ANPR is connected to the Preview and Archive module without any other filters

Does it help? If not, well, maybe it is the permissions - could you look into your Mac's settings for the openalpr launch?

[XeoMax]

Nothing.
I highly suspect, that MacOS isn't compatible with the precompiled OpenAlpr program.
I've tried to download OpenAlpr on a Debian machine and started "alpr" by hand. The above images have been correctly detected.
For now, i've workarouded that by using a node-red flow on that Debian machine, but it would be nice if OpenAlpr had work in the Xeoma program as well.
If you've time to spend, i suggest you to try to install Xeoma on a Mac and give it a try.

[Admin_N]

Thanks for your feedback.

openALPR works on Mac OS, too (including when used from Xeoma). And Xeoma (and openALPR) works under Debian as well.

That all said, you might want to re-install Xeoma and openALPR on your Mac, or look into your Mac OS permissions.

[XeoMax]

Hello Admin.
Running alpr manually on the Mac, from the xeoma's openalpr path, do works.
Running it from xeoma, doesn't.
I must give up
Thank you anyway.

[Admin_K]

Hello Admin.
Running alpr manually on the Mac, from the xeoma's openalpr path, do works.
Running it from xeoma, doesn't.
I must give up
Thank you anyway.

Hi, we're sorry to hear that it still doesn't work.

Anyway, feel free to contact us anytime via Skype, online chat or email, we'll gladly and quickly help!

[XeoMax]

Thank you, but i suspect something in macOS interfere wit it. Never mind. Thank you.

[CoddyG]

Voglio che tu mi aiuti a risolvere anche questo problema.

[admin_mary]

[quote="CoddyG"]Voglio che tu mi aiuti a risolvere anche questo problema.[/quote]
Could you please tell us which version of Xeoma are you using? Try to update to the latest version 21.4.2
You can download it by the link: ([url]https://felenasoft.com/xeoma/en/download/[/url])

[CV RV SECURE]

not accurate at all. got it to read the plate 2 times correctly after about 100 trys.
help files says>
For Windows it’s:
C:\Users\Public\Documents\Xeoma\

NO my modules says Public\Documents\Xeoma\Additional\openalpr
download has a folder called>openalpr-2.2.0 NOT openalpr
NOW i have this installed in 3 serpate folders not knowen where to put it,
NO SELF INSTALLER.
module says USA on top then at the bottom USA,CANADA
now i have 2 check boxes for USA , why?
it seams any thing you do with this program your giving a WORK AROUND not just a simple add modules and it works.
like this modules not been tested very well when this should be open to the PUBLIC in support form and not sent to support
so EVERYONE can compair there problems.

[Admin_P]

Hi.

"got it to read the plate 2 times correctly after about 100 trys."
It would be a good idea to share the screenshots of the attempts you have made (like the OP did) - without visual reference any attempt to guide you would be just guesswork.

"help files says>
For Windows it’s:
C:\Users\Public\Documents\Xeoma\"
Can you point out the exact file/webpage where you've found any inconsistencies?

"NO SELF INSTALLER."
If you are referring to OpenALPR - you can just press "Download and install OpenALPR" button in ANPR module settings - Xeoma will create all the necessary files and folders automatically, not need for manual installation.

"module says USA on top then at the bottom USA,CANADA
now i have 2 check boxes for USA , why?"
They refer to different algorithms for plate recognition. "USA, Canada" uses Xeoma's own algorithm (this checkbox is available even before OpenALPR is installed). "USA" uses OpenALPR's algorithm (becomes available only after OpenALPR is installed).

Offtopic:
As you can see at the top of this page, this topic was opened back in 2018, so you are not very likely to find any up-to-date info on Xeoma's functionality here, not in 2022. Creating a new topic would be preferable to barging into an old thread with new information.
The fewer details you give, the lower the odds that someone will be able to actually help you. Without seeing the picture, without knowing Xeoma's version or the server's OS, guesswork would be the only option, which makes people a lot more likely to just shrug and move on.
No one is going to ban you for this kind of behavior or delete the post, but I strongly recommend you reconsider this approach, because ultimately it does not help anyone involved.
